Mobile X-ray Machine 100mA

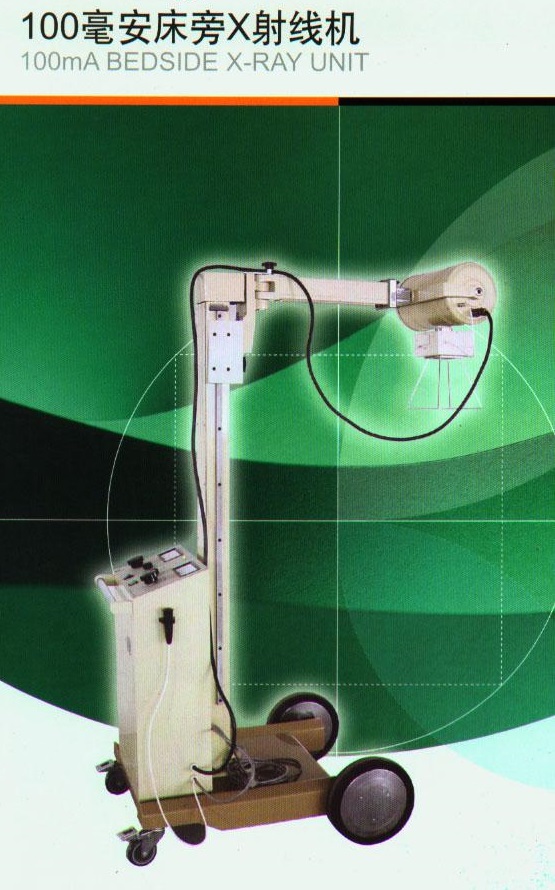

JP-100M Medical 100mA Mobile X-Ray Machine
Used in ward and emergency treatment room for radiography.
Combined x ray generator.
Single focus,bridge rectification.
It is precise,safe,reliable and flexible.
Romote control device(control range≥5m)is used
- Single table and single tube
- Design according to the electric mechanism of middle-size machine ,The function is reasonable.
- The high-tension system is of march-past structure. Equipped with a full wave rectification high-voltage generator and independent X-ray tube unit, with large output power and reliable and stable operation
- Supply voltage (V), roentgenoscopy, radiography (KV) and step less adjustable.
- Equipped with the manostat for filament of X-ray tube and the space charge compensator as to ensure the stable and accurate output.
- Equipped with the capacity limitation and protection circuit and KV , mA’S interlock limitation and protection
- Adopt the digital circuit timer, grade according to R10 priority coefficient and can control time exactly,
- Diagnostic table is of electric back rotation and is equipped with vibrating filter-ray device
- The spot film device of luminescent screen can hold the film jacket of various sizes and can make the photography of full-film and two sectional films separately.
- The column has the bottom track only, which is easy while installation.
Main Technical Parameter :
|X-ray generator||Stationary anode,single focus and bridge silicon rectification,The X-ray generator is an oil-immersed self-colled unit|
|Max rated capacity||Current||15mA||30mA||60mA||100mA|
|Power supply||Voltage: 180-240V|
|Power: not lower then 7kVA|
|Resistance: not larger then 1Ω|
|Voltage adjustment range of x-ray tube||50-90Kvp|
|Range of the timer||0.08-6.3s|
|Distance between the focus to the ground||700-1780 mm|
|X-ray tube focus transverse rotation||±60°|
|Specification of X-ray tube||Model XD 4 2.9/100 fixed anode,single focus 1.8/4.3mm|
