Professional Radiography X-Ray Machine 500mA

Table of Contents

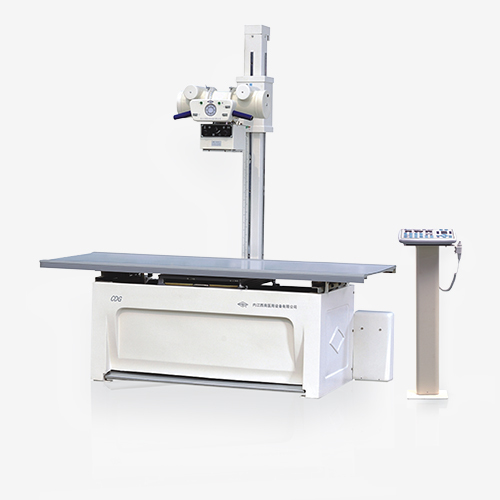

Medical Diagnostics 500mA X-Ray Machine.

Model: KB-500mA

KB500(500mA,Professional Radiography X‐ray machine)
Standard Configuration:·         1 KB-500 Controller·         1 5G Generator·         1 SC1F-125KV X-ray Tube Assembles·         1 YS11S Manual Collimator·         1 YS127C High-voltage Cables·         1 CDG Multi-functional Radiography Table
Parameter Specification
Generator kVp Range 40-125KV,adjustable
Tube Current range: 50-500mA ,
mAs Range Adjustable
Loading time range 0.02-5S,23 grades adjustable
Xray Tube Double focus spot 1×1 ,2×2
The anode rated speed 2800r/min
Thermal capacity,KHU 140KHU
Collimator   Manual leafy type rectangular radication Manual
continuous adjustment Yes
Intensity of  illumination acuity ≥100 lx
Radiography Size 5″×7″,8″×10″,10″×12″,11″×14″,12″×15″,14″×14″,14″×17″
Radiography Table  Grid Rate:10:1
Grid density:40L/cm,
Focusing distance:100cm
Mobile range:≥610mm
Table movement vertical:1280mm,cross:215mm
Tube movement Around the cross arm:±180°,around longitudinalaxis rotation±90°Vertical stroke≥1130mm
The break of the table Electromagnetic locking
Column movement Body rotate≥180°,each 90°localize,The verticaltravel of worktable:1500mm
